DESCRIPTION

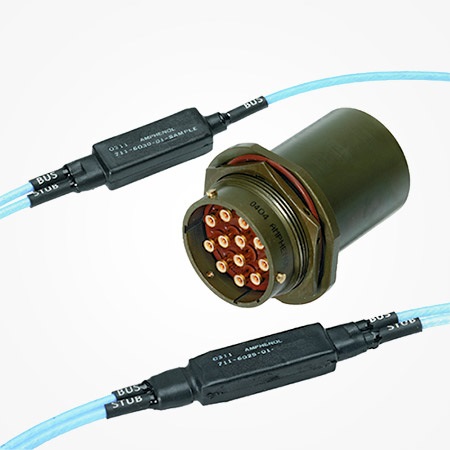

711 Series is a range of connectors, couplers and terminators for MIL-STD-1553B databus applications. Available in both single and multiway housings the connectors feature a size 10 twinax contact offering higher density than standard connectors with 12 contacts available in a shell size 24 housing. Both in-line and connectorised transformer couplers are available with our unique can coupler design offering a fully encapsulated 10 STUB coupler system within a size 24 connector housing. Both BUS (77W) and STUB (3K) termination connectors and contacts are available and all items are flight qualified for use on military aircraft.

FEATURES AND BENEFITS

• Single and Multi-way connectors
• Size 10 twinax contact
• Highest density connector
• Nickel or Cadmim plating
• In-line or connectorised transformer couplers
• BUS and STUB terminators
• Flight qualified
• Crimp or PC Tail termination
