DESCRIPTION

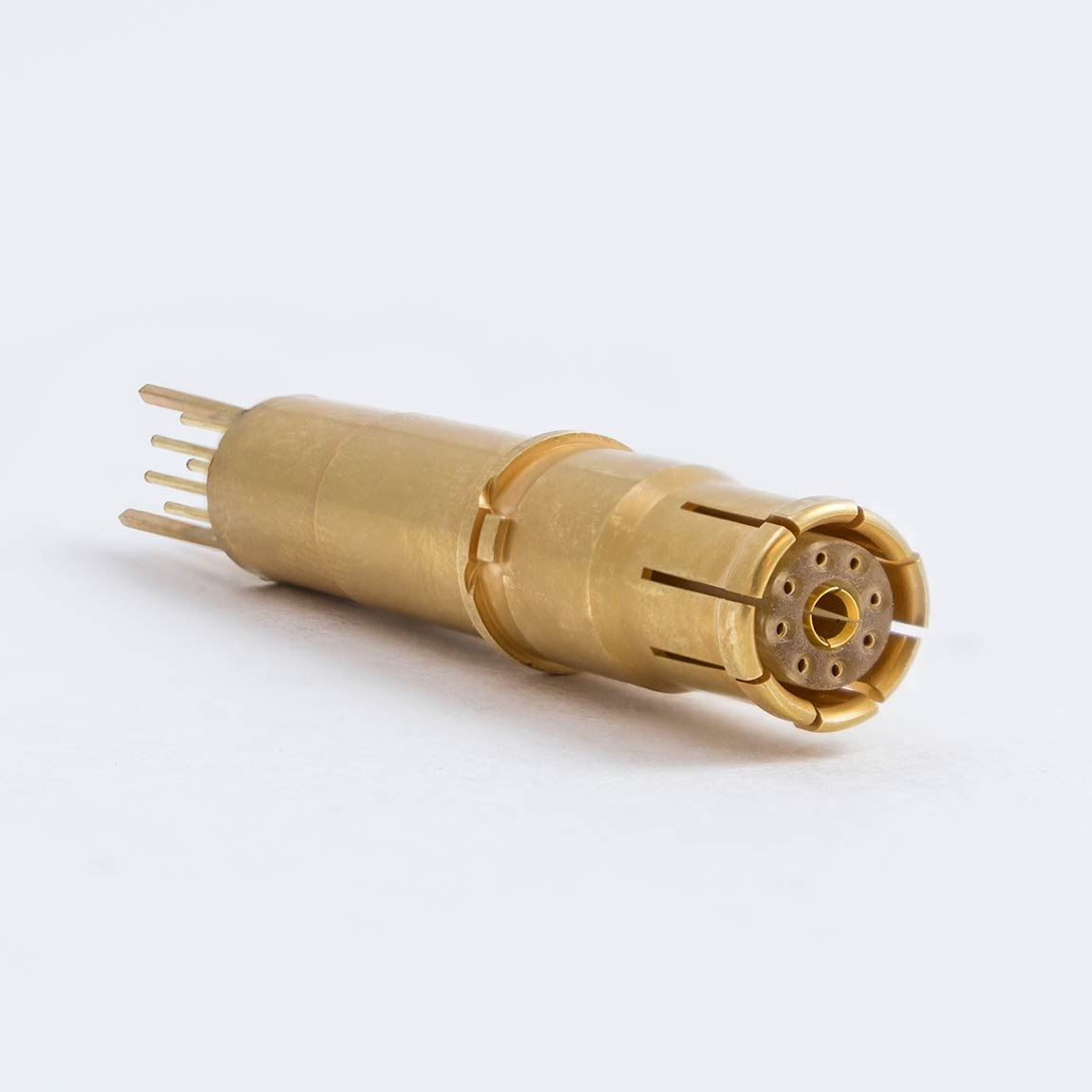

Superior Ethernet contact system for MIL-DTL-38999, Series III. Eight strategically spaced inner contacts form four 100 Ohm matched impedance differential pairs. Easy drop-in replacement to installed connectors; no need to redesign. Self-removing contact feature - no extra contact extraction tool needed (24 Gauge only). Octonet Contacts are ideal for Ethernet or AFDX networks with a reduced envelope. This contact range fits within standard size 8 cavity of MIL-DTL-D38999/EN3645, SIM/EN4165,ARINC.

FEATURES AND BENEFITS

• Available in size 8 crimp termination style
• Also available in PC Tails
• Can be installed in existing size 8 Quadrax cavities
• Meets performance specifications of CAT-6A cable
• 10G Ethernet compliant
• Overall higher bandwidth than standard CAT5E Quadrax-supports up to 4.0 Gbps per pair
• Enhanced crosstalk performance (compared to standard Quadrax)
• Supports wire ranges 26 to 24 gauge
• Operating Temp -65°C to 175°C
