DESCRIPTION

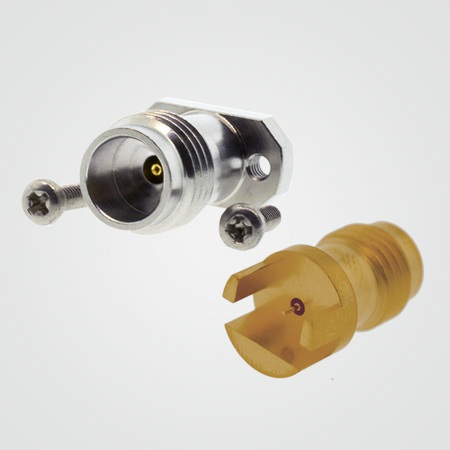

The 1.85mm connector was designed for mode free operation through 65 GHz. The interface uses a mostly air-dielectric with a support bead that is set back in the body of the connector to reduce bead interaction in a mated pair.

Like the 2.92mm and 2.4mm connector, the body has been designed to ensure that the outer conductors engage before the center conductors make contact. The 1.85mm interface uses an M7 thread and is compatible only with the 2.4mm interface. SV Microwave supplies adapters to mate 1.85mm connectors to SMA and 2.92mm connectors.

FEATURES AND BENEFITS

• Excellent performance DC to 65 GHz
• Compatible with 2.4mm Connector Series
• Air Dielectric; Captivated Center Contact
• Ruggedized Construction for Repeatability and Reliability
